Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine

2025-07-04 08:53:37 glzon

Decoration Paint Cans Filling Machine

Model NO.
GZM-30-1PT
Type
Volumetric Filling Machine
Automatic Grade
Semi-Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Suitable Material
Coatings, Inks, Paints, Asphalt, Glue, Lubricants
Barrel Form
Pail, Can, Bottle, etc.
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings
Transport Package
Wooden Case
Specification
1300*850*1400mm
Trademark
GLZON
Origin
Shanghai

Product Description

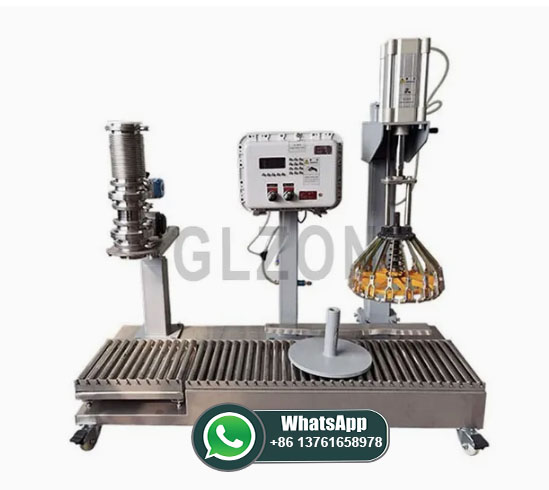

Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine

Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Product Description

Introduction
The semi-automatic bucket filling machine, is mainly composed of weighing and filling system, frame, stainlesssteel roller table, capping system, pneumatic control, electrical control and othersystems, so as to realize manual barrel discharge - automatic filling - Manualcapping- automatic capping -finished product storage.

It adopts a gravimetric method to measure, by weighing the sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipping with a pump in the front end of the feeding port, or pressuring the material tanks Sent material from the tank to the filling machine. The filter device can be added before filling to guarantee the quality of products.

The economical semi-automatic volumetric filler that can be configured to fill a wide variety of container sizes. 1/2 Pint to Pails. Placing a container under the nozzle begins the fill cycle by contacting the no-can-no fill switch. After filling, the container is advanced by the operator to the conveyor. Containers are sealed as they are conveyed through an available roller closer, crimper or press plate.
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Features
1.For the filling of square barrels and drums below 100kg, the system adopts programmable PLC control, with full Chinese guid- ance and easy operation;
2.The filling head extends into the barrel mouth and automatical- ly exits when filling is completed. If the filling head is not aligned with the barrel mouth, it will automatically return;
3.The filling gun is made with integral technology to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean;
4.The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications;
5.Equipped with a large and small ball width group and a double-stage filling gun, the four-stage filling design of large, medium, small and trace quantities makes filling more accurate;
6.Filling is prohibited without a bucket on the weighing platform, and differential pressure zero-time bucket collision protection is provided;
7.Net weight/gross weight (automatic tare for each barrel) Two filling methods are automatically selected;
8.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other information;
9.There is a signal indicator light for real-time display, and an automatic alarm if the deviation is exceeded;
10.It has good stability,reduces losses,saves costs,improves operating efficiency and reduces manual operation pressure.

Product Parameters
Product Parameters
ModelGZM-30-1PT
Filling range10-60kg
PowerAC220V±10%50hz
Air source0.5mpa
Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling accuracy0.02%
Speed(can/min)2-4 barrels (1000L)
Filling station1
Materialsus304/316
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine


Installation Instructions

Main structure and working principle

1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.

2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.

3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).

4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping MachineSemi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine

How to operate

1.Manually place the bucket on the weighing platform to quickly locate the counterpart - the system automatically detects the bucket position and fills the gun.

2.Automatically insert into the bucket mouth - automatically peel - automatically open the filling gun and ball valve group to start filling.

3.Loading---four-stage filling of large, medium, small and trace quantities---reach the target value---filling gun.

4.Automatically close and rise outside the barrel---manually move to the lid lock area---press the [Lock lid] button
Pneumatic locking cover---manual palletizing.

Company Profile

Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Company Profile

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base. "High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.

Our Advantages

Why choose us

1. Packaging solution
we provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.

2. Pre-sale Service.
pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.

3. After-sale service
we provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.

Free training course will be given to your technician at our factory site in Shanghai China.
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Certifications

Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
FAQ

Q1: Are you manufacturer?
A: Yes. We have more than 10 years of manufacturing and exporting experience. We are proud to be the first batch of Chinese manufacturers devoted in large format printers.

Q2: How to buy?
A: Simply contact our sales expert and inform your demands, request for a Proforma Invoice. The order will be shipped after the invoice get paid.

Q3: How can I trust you?
A: Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check your goods. Or place order through ****** Trade Assurance Order. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for long time. You can always rely on us.

Q4: How to send goods to my place?
A: We have regular reliable forwarder agent, can send goods to you by sea, by air, by DHL Express, or if you have agent, we can send to their warehouse in China.
And if you want to combine our products with other items you bought from other supplier, we would also be happy to help.
If you are new for importing, feel free to contact us. We will help check the most suitable transportation method for you.

Q5: How is your warranty?
A: 12 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan. For more information, please feel free to contact our sales people.

Q6: How is your technical support?
A: We provide 12 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer.
From Monday to Sunday, 9am to 9pm. No need to worry about the technical support due to time difference.
Onsite support also available.
Packaging & Shipping
                                                                           Shipping Scenario and Component Brand
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine
Semi Automatic Decoration Paint Cans Filling Machine with 30L Capping Machine

Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
