HardenerFill HF-5000 SeriesAutomatic Inline Gravimetric Filling System for Hardener Pails & TinsATEX Zone 1 Certified • 50 Units/Hr • ±0.05% Accuracy • Zero VOC Emission • Corrosion-ProofCore Tech
Automatic Inline Gravimetric Filling System for Hardener Pails & Tins
ATEX Zone 1 Certified ? 50 Units/Hr ? ±0.05% Accuracy ? Zero VOC Emission ? Corrosion-Proof
| Parameter | HF-5100 (Standard) | HF-5200X (ATEX) | HF-5300P (High-Purity) |
|---|---|---|---|
| Capacity | 5-30L (±0.05%) | 5-30L (±0.08%) | 5-30L (±0.03%) |
| Throughput | 50 Units/Hr | 45 Units/Hr | 42 Units/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 100-500,000 cP | 200-300,000 cP | 50-1,000,000 cP |
| Container Compatibility | Steel Pails ? HDPE Tins ? Composite Drums<br>Lid: Camlock ? Tri-Clamp ? Bolt Ring | UN-Certified | Aseptic Containers |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 200L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | Zirconium R60702 | Hastelloy C276 | PFA-Lined Zirconium |
| Corrosion Resistance | 0.001 mm/yr (ASTM G31)<br>Temp: -20°C to 120°C | Same | 0.0005 mm/yr (SEMI F20) |
| Safety Systems | TripleShield?:<br>1. N? Inerting (O?<0.3%)<br>2. -0.8bar Vacuum Hood<br>3. Activated Carbon VOC Adsorption (99.97%) | + Explosion Venting | VHP Sterilization |
| Static Control | Ionized Air Curtain<br>? 10? ions/cm3 Output<br>? <0.1kV Surface Charge<br>? SIL-3 Spark Detection | NFPA 77 Compliance | Conductive Path (<10? Ω) |
| Inline Integration | OPC UA/PROFINET/MQTT<br>? Auto-Recipe Change<br>? Predictive Maintenance<br>? <50ms Response | SIL-3 Safety PLC | 21 CFR Part 11 |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 11kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.300 |
Corrosion Validation:
| Hardener Type | Concentration | Zirconium R60702 | 316L SS |
|---|---|---|---|
| Epoxy Hardener | 70% | 0.001 mm/yr | 18 mm/yr |
| Polyamine | 60% | 0.0008 mm/yr | 22 mm/yr |
| Isocyanate | 80% | 0.0012 mm/yr | Dissolves |
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Double Mechanical Seal | <10?? mbar·L/s Leak Rate |
| Secondary Barrier | -0.8bar Vacuum Hood | 100% Splash Containment |
| Tertiary Capture | Activated Carbon Bed (50kg) | 99.97% VOC Adsorption |

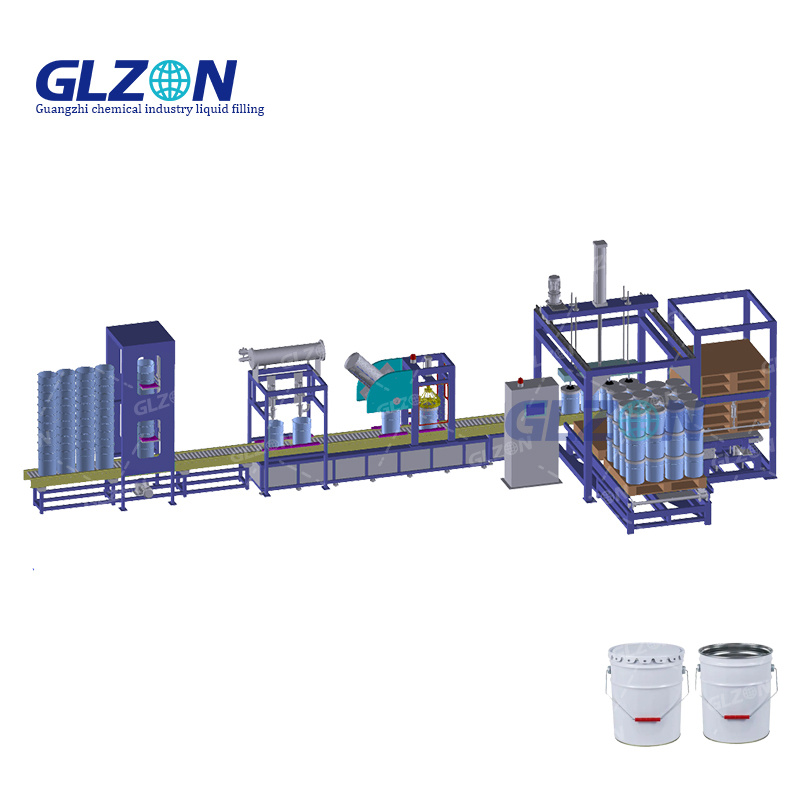

1. AGV Pail Loading → 2. RFID Auto-Identification → 3. Nitrogen Purging (O?<0.3%) → 4. Precision Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (50-150 N·m) → 7. Helium Leak Test → 8. Palletizing
Cycle Time: 72 seconds/unit
Precision & Safety Excellence
? Gravimetric Mastery: | **Component** | **Performance**| |----------------------|------------------------| | Coriolis Meter| ±0.01% Density Accuracy | | Load Cells| Temperature-Compensated ±0.02% | | Adaptive PID| ±0.05% Fill Consistency | ? Explosion-Safe Architecture: 1. ATEX Zone 1 Certification (Category 1G) 2. SIL-3 Spark Detection (0.1s Shutdown) 3. Static Dissipation <0.1kV ? Zero-Emission Operation: - 99.97% VOC Carbon Adsorption - Double Kalrez? Seals - Helium-Verified Integrity
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? SEMI F20/F44 (High-Purity)
Huntsman Advanced Materials:
"After implementing HF-5200X:
Output: 28 → 50 Pails/Hr (+79%)
Hardener Loss: ↓97% (Triple Containment)
Accuracy: ±0.3% → ±0.04%
ROI Period: 9 months"
APPLICABLE BARREL TYPE
