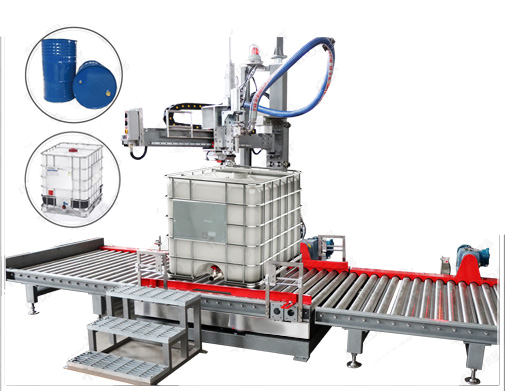

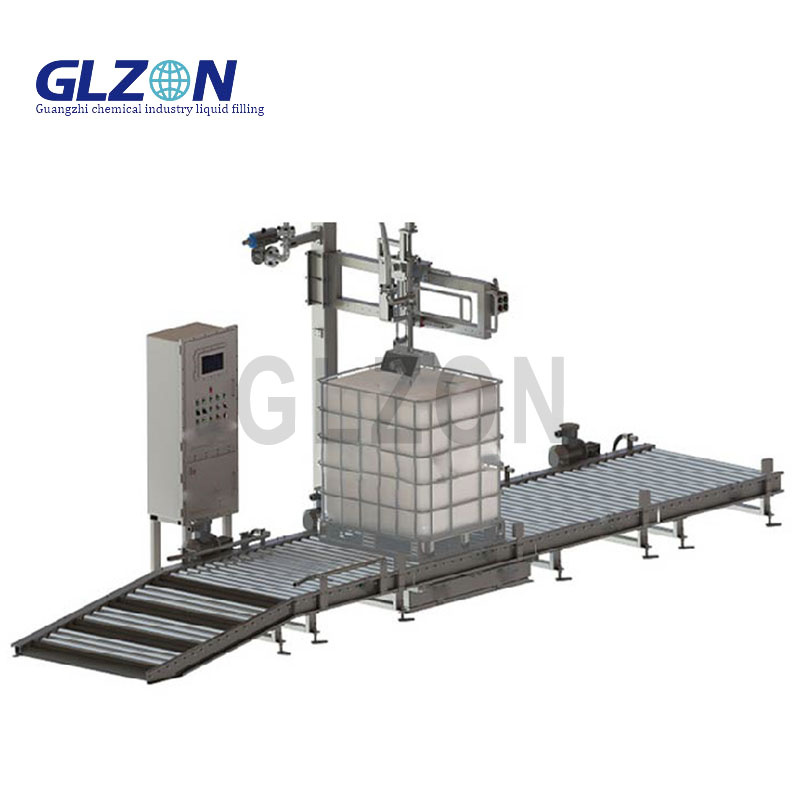

200/1000L Semi-automatic filling machine(rocker arm type)

Shanghai Guangzhi’s rocker arm filler handles 200-1000L containers with ±0.2% accuracy. Vapor recovery, ATEX option & corrosion-proof construction. Ideal for oils/chemicals.

  • Brand: glzon
  • Model: GZM_1000L

Product Essence: Precision Meets Operator Control

Shanghai Guangzhi Automation’s Rocker Arm Filler revolutionizes mid-volume liquid handling – delivering ±0.2% gravimetric accuracy for 200-1000L drums/IBCs of oils, solvents, and acids. Featuring a 360° rotating arm with height-adjustable nozzle, closed-loop vapor recovery, and Hastelloy C276 fluid path, it enables safe one-person operation while eliminating spills and emissions in harsh industrial environments.

Rocker Arm Drum Filler


Core Technology Innovations

1. Intelligent Rocker Arm System

FeatureTechnical Advantage
Multi-Axis Rotation340° horizontal + 120° vertical sweep
Counterbalance AssistEffortless nozzle positioning (≤10N force)
Quick-Release NozzlesTool-free change <30s (50-150mm ?)
Ground VerificationAuto-lock if resistance >10Ω

2. Hazard-Contained Filling

  • Dual-Seal Vapor Control:

    • Floating piston + nitrogen blanket (O?<0.5%)

    • ≥99.7% capture efficiency (EPA Method 21)

  • Zero-Drip System:

    • PTFE-coated needle valves

    • Air knife cut-off (residual ≤0.1ml)

3. Extreme Environment Resilience

  • Material Options:

    • Hastelloy C276: HCl/H?SO? up to 50%

    • PTFE-Lined: Ketones/chlorinated solvents

    • 316L SS: Food-grade oils

  • ATEX Zone 1 Kit:

    • Ex d IIC T4 pressurized control

    • Intrinsically safe sensors


Technical Specifications

Parameter200L Drum Model1000L IBC Model
Filling Range50-200L (±0.2%)200-1000L (±0.3%)
Flow Rate40 L/min100 L/min
Viscosity Range1-100,000 cP1-50,000 cP
Container Height500-1000mm800-1500mm
Arm Reach1500mm2000mm
Power220V/50Hz, 2.2kW380V/50Hz, 4.5kW
Vapor Recovery≥99.5%≥99.7%
Footprint (L×W×H)1800×1200×2200mm2500×1500×2800mm

Material-Specific Engineering

Liquid TypeOptimized Configuration
Lubricants (ISO VG 460)Heated jacket (60°C) + anti-foam
37% Hydrochloric AcidElectro-polished Hastelloy C22
Edible Oils316L SS + USDA seals
AcetoneATEX Ex ia + nitrogen inerting

Operator-Centric Design

Ergonomic Workflow

  • Single-Hand Control:

    • Joystick nozzle positioning

    • Foot pedal start/stop

  • Smart HMI Features:

    • Fill volume presets (20 recipes)

    • Real-time weight display

    • Vapor recovery efficiency

Safety Ecosystem

  • Emergency stop within 0.5s

  • Ground fault interlock

  • Splash guard visor


Operational Impact

German Chemical Distributor Case:

  • Challenge: Xylene filling spills causing 5% loss + VOC violations

  • Solution: ATEX rocker arm filler with vapor recovery

  • Results:
    ? Zero spills in 10,000+ fills
    ? VOC emissions <10ppm
    ? ROI in 8 months


Global Compliance & Upgrades

Certifications:

  • ATEX 2014/34/EU (Zone 1)

  • CE PED 2014/68/EU

  • FDA 21 CFR 177.2600

  • ISO 9001:2015

Critical Options:

ModuleFunction
CIP SystemAcid/alkali wash cycles
Inline ViscometerReal-time viscosity compensation
AR Maintenance GuideHoloLens-assisted repairs
Blockchain Batch LogImmutable fill records

Support & Service

24/7 Hazardous Response:

  • Remote diagnostics via IIoT

  • Global Spares Network:

    • Hastelloy nozzles

    • Vapor membranes

    • Rotational encoders
      Delivery ≤72h from Shanghai/Houston/Rotterdam hubs


APPLICABLE BARREL TYPE

Drum Filling Machine

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Drum Filling Machine

Company Certificate

Drum Filling Machine

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

Drum Filling Machine


This is a partial Drum Filling MachineDrum Filling Machine

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.






Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Drum Filling Machine


Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.


Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.


Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.


Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

Drum Filling Machine

FAQs

Our in-house designers and engineers have produced countless great designs for customers from different industries

1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
