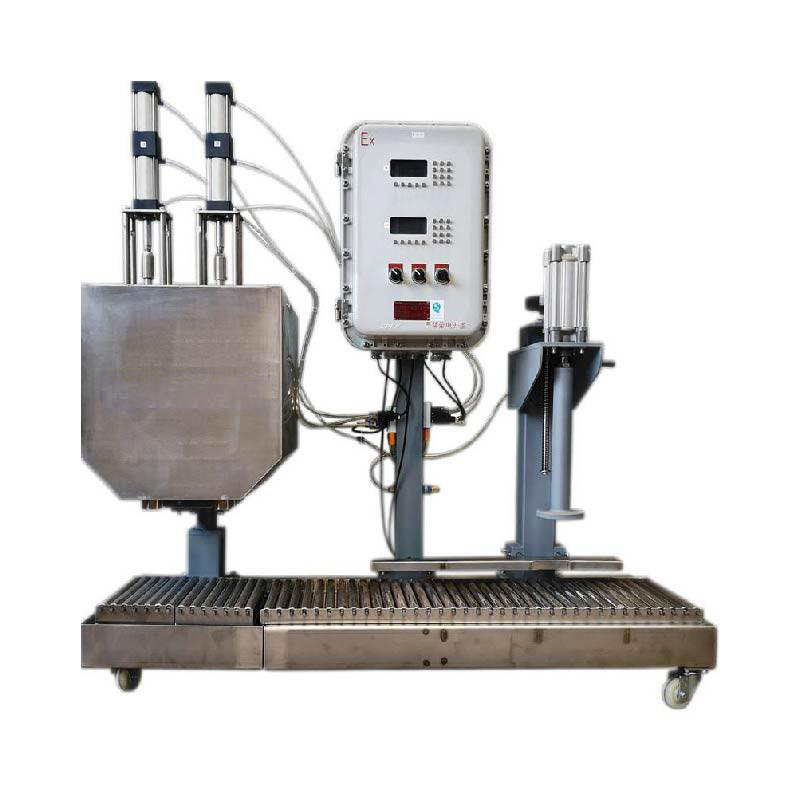

Paint Filling machine
Basic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on feed flow rate);■ Power s
- Brand：
- Model：
1. Product Introduction
Shanghai Guangzhi’s Paint Filling Machines are engineered for speed, precision, and reliability in demanding industrial environments. Our systems automate the filling process for containers ranging from 100ml cans to 30L pails, minimizing waste and maximizing throughput. Ideal for paint manufacturers, chemical suppliers, and packaging facilities, these machines ensure consistent fill volumes (±0.5% accuracy) while handling viscosities up to 50,000 cP.
Key innovations include:
Adaptive Viscosity Control: Automatically adjusts filling parameters for thin solvents or thick latex paints.
Leak-Free Sealing: Stainless steel/PVDF fluid paths resist corrosion and cross-contamination.
Smart HMI Interface: 10-inch touchscreen with recipe memory, production analytics, and error diagnostics.
Quick-Change Tooling: Swap filling nozzles & clamps in <5 mins for different container sizes.
2. Technical Overview
Core Specifications
| Parameter | Semi-Auto Model (PFM-SA) | Fully Auto Model (PFM-FA) |
|---|---|---|
| Filling Range | 100ml – 5L | 250ml – 30L |
| Filling Accuracy | ±0.5% of set volume | ±0.3% of set volume |
| Speed (Containers/Hour) | 600 – 900 | 1,200 – 2,400 |
| Viscosity Range | Up to 20,000 cP | Up to 50,000 cP |
| Filling Heads | 1-4 | 4-16 |
| Power Supply | 220V/380V, 50/60Hz | 380V, 50/60Hz |
| Air Pressure | 0.5 – 0.7 MPa | 0.6 – 0.8 MPa |
| Material Contact Parts | SS316L / PTFE / PVDF | SS316L / Ceramic / PVDF |
Material Compatibility Table
| Paint/Chemical Type | Compatibility | Recommended Seal Material |
|---|---|---|
| Water-Based Paints | Excellent | PTFE / EPDM |
| Solvent-Based Enamels | Excellent | Kalrez? / FFKM |
| Epoxy Coatings | Excellent | PTFE / PVDF |
| UV-Curable Resins | Good | PTFE / Ceramic |
| Acids/Alkalis (pH 1-14) | Excellent | PVDF / Ceramic |
3. Operational Features
Filling Methods: Gravimetric, volumetric piston, or time-pressure modes.
Safety: Explosion-proof (ATEX Option), emergency stop, splash guards, and vapor extraction ports.
Hygiene: CIP (Clean-in-Place) & SIP (Sterilize-in-Place) ready.
Integration: Compatible with conveyors, capping machines, labeling systems (PLC: Siemens/Allen-Bradley).
4. Quality Assurance
Certifications: CE, ISO 9001:2015, ISO 14001.
Testing: Each machine undergoes 72hrs of continuous run-time testing.
Warranty: 18 months on critical components.
5. Why Choose Guangzhi?
| Advantage | Benefit |
|---|---|
| Modular Design | Scalable from pilot lines to full production |
| Precision Engineering | ≤0.3% waste vs. industry avg. of 2-3% |
| Local Support | Engineers in 15 countries for installation & maintenance |
| Customization | Tailored solutions for unique formulations or containers |
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
Our in-house designers and engineers have produced countless great designs for customers from different industries
1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
