paint coating Filling machine
Basic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 500-700 barrels per hour/(25 liters depending on feed flow rate);■ Power s
- Brand：
- Model：

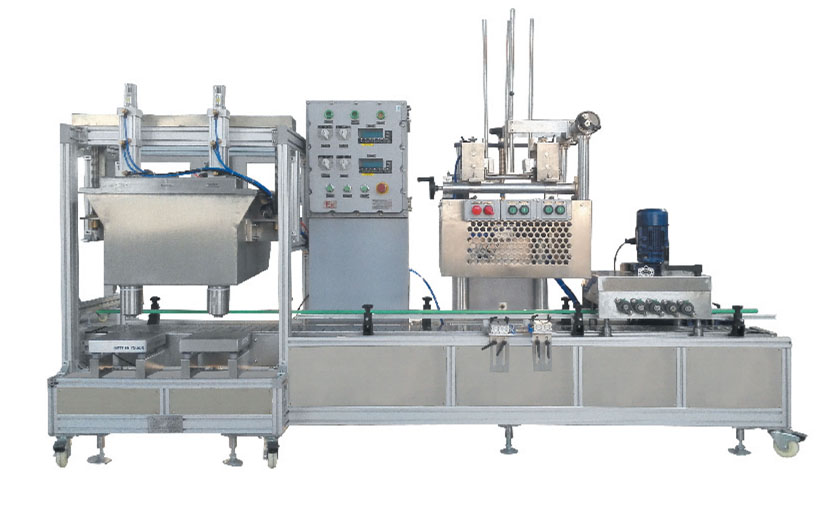

The Paint Coating Filling Machine by Shanghai Guangzhi Foreign Trade Department is engineered for precision filling of paints, coatings, varnishes, and adhesives. Utilizing advanced servo-motor technology and corrosion-resistant materials, it ensures high-speed, leak-free operations while maintaining ±0.5% accuracy. Ideal for industries requiring strict viscosity management (up to 50,000 cP), this machine reduces waste by 15% and boosts production efficiency by 40%. Compatible with containers from 100ml to 20L, it supports diverse packaging formats (tins, cans, buckets) with minimal changeover time.
Product Overview
Key Features:
Intelligent Control
Touchscreen PLC interface with recipe memory for 50+ formulations.
Automatic viscosity compensation and temperature monitoring.
Hygienic & Durable Design
316L stainless steel fluid path, CIP/SIP cleaning systems.
IP65-rated enclosure for harsh chemical environments.
Flexible Filling
Adjustable piston/nozzle configurations for thick coatings or metallic paints.
Quick-change tooling (<5 minutes) for different container sizes.
Eco-Safe Operation
VOC-reducing sealed filling system with emergency drip trays.
Energy-saving mode cuts power consumption by 20%.
Technical Specifications:
Table 1: Core Performance Metrics
| Parameter | Specification |
|---|---|
| Filling Range | 100ml – 20L |
| Filling Accuracy | ±0.5% of set volume |
| Speed (max.) | 45 fills/minute (for 1L containers) |
| Viscosity Tolerance | Up to 50,000 cP |
| Air Pressure | 0.6–0.8 MPa |
| Power Supply | 220V/380V, 50/60Hz, 2.5kW |
| Material Contact Parts | 316L Stainless Steel, PTFE, EPDM |
| Noise Level | ≤70 dB(A) |
Table 2: Model Variants
| Model | Filling Heads | Tank Capacity | Throughput (pcs/h) | Container Compatibility |
|---|---|---|---|---|
| PCM-1S | 1 | 50L | 1,200 | Tins, cans (100ml–5L) |
| PCM-4A | 4 | 200L | 4,800 | Buckets, pails (1L–10L) |
| PCM-8P | 8 | 500L | 9,600 | Drums, IBCs (5L–20L) |
Applications:
Industrial Paints: Automotive primers, epoxy coatings.
Architectural Coatings: Emulsions, textured paints.
Specialty Chemicals: Solvent-based varnishes, UV-curable resins.
Adhesives: Silicone sealants, polyurethane foams.
Certifications & Compliance:
CE, ISO 9001, GMP (for pharmaceutical-grade coatings).
ATEX optional for explosive environments.
After-Sales Support:
Global 24/7 technical assistance, 1-year warranty, and training modules.
APPLICABLE BARREL TYPE
