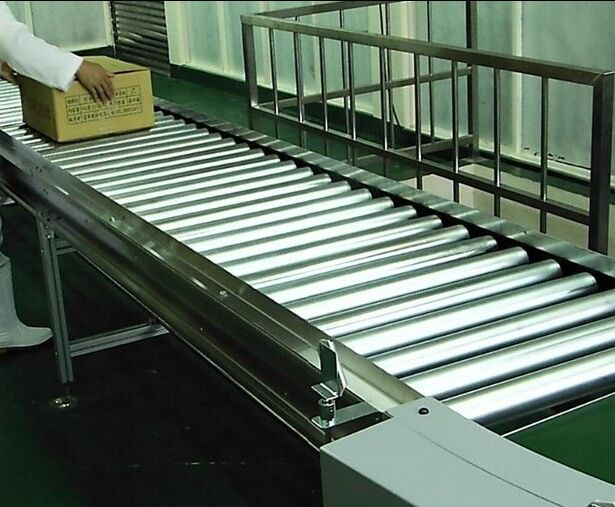

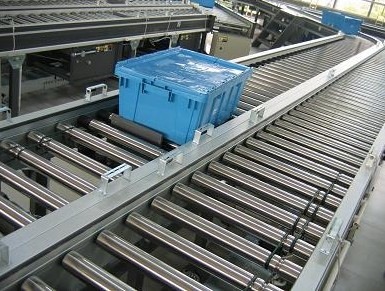

Pallet Roller ConveyorThe unpowered roller conveyor relies on the roller to complete the transportation, which is suitable for the transportation of all kinds of boxes, bags, pallets and other pieces
| Parameter | Standard | High-Capacity | Test Standard |
|---|---|---|---|
| Max. Load Capacity | 1,500 kg/m | 3,000 kg/m | FEM 1.001 |
| Pallet Size Range | 800×600mm to 2000×1200mm | ISO 6780 | |
| Conveyor Speed | 5-30 m/min | 5-25 m/min | EN 619 |
| Roller Diameter | ?114 mm | ?139 mm | DIN 15237 |
| Roller Pitch | 150 mm | 200 mm | ISO 282 |
| Ambient Temperature | -25°C to +65°C | -30°C to +80°C | IEC 60068-2 |
2.1 Frame System
Material: Cold-formed steel (S355MC) / Stainless steel (AISI 316L)
Section: Box beam 120×80×6mm (FEM 1.001 certified)
Surface Treatment: Hot-dip galvanized (ISO 1461) / Epoxy coating (ISO 12944 C5-M)
2.2 Roller Assembly
Tube: Seamless steel (δ≥6mm) / Stainless steel (δ≥5mm)
Bearings: Triple-sealed roller bearings (IP69K)
Axle: 40Cr alloy steel (HRC 50-55)
2.3 Drive Systems
| Type | Power | Control Precision |
|---|---|---|
| Motorized Roller | 0.75-3.0 kW | ±0.5% speed (VF control) |
| Shaft-Driven | 3.0-7.5 kW | ±1% torque |
| Magnetic Drive | 1.5-4.0 kW | Zero maintenance |
| Characteristic | Specification | Compliance |
|---|---|---|
| Noise Level | ≤70 dB(A) @ 1m | ISO 4871 |
| Roller Resistance | ≤0.8 N per 100kg load | DIN 22301 |
| Minimum Curve Radius | R=1,200mm (motorized rollers) | FEM 9.511 |
| Impact Resistance | 5 kJ energy absorption | ISO 14122 |
4.1 Heavy-Duty Features
Overload Protection: Hydraulic torque limiter (settable 100-150% rated)
Alignment System: Laser-guided pallet centering (±2mm accuracy)
Roller Replacement: Quick-release design (≤10 min per roller)
4.2 Functional Modules
| Module | Function | Technical Specification |
|---|---|---|

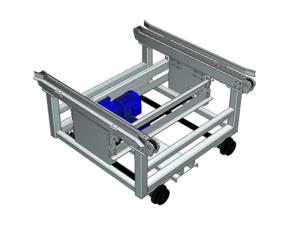

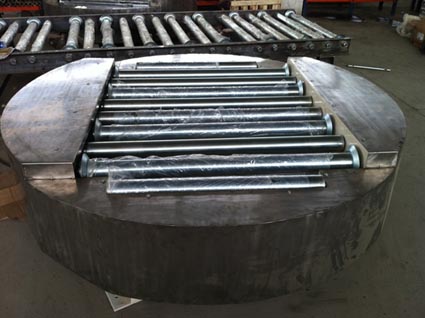

| Transfer Cart | 90° pallet shifting | 5-ton capacity, 0.8m/s travel |

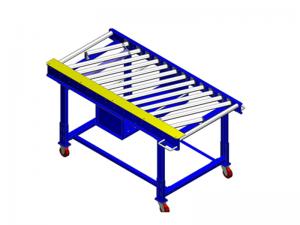

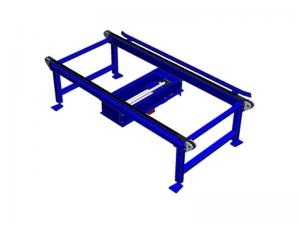

| Lift & Position | Height adjustment | Scissor lift (500mm stroke) |
| Weighing Section | In-line pallet weighing | 4× load cells (±0.1% accuracy) |
| Accumulation Zone | Zero-pressure buffer | Servo-controlled braking system |
MTBF (Drive System): >35,000 hours (ISO 281)
Roller Service Life:
Standard: 60,000 operating hours
Heavy-duty: 100,000 operating hours (FEM 1.001)
Bearing Maintenance: Grease-free lifetime lubrication
6.1 Safety Systems
Emergency stop circuits (Category 4, PL e per ISO 13849-1)
Anti-collision sensors (Type 4 light curtains)
Roller guard protection (EN 619 compliance)
6.2 Control Architecture
PLC: Siemens S7-1500 with PROFINET
HMI: 12" ruggedized touch panel
Connectivity: OPC UA, MQTT, EtherNet/IP
7.1 Certifications
EU: CE, EMC 2014/30/EU, Machinery Directive 2006/42/EC
North America: UL 508A, OSHA 1910.212
International: ISO 9001:2015, ISO 45001
7.2 Export Packaging
Structural frames: Reinforced wooden crates (IPPC ISPM-15)
Rollers: VCI+ film wrapping (ASTM D1190)
Electronics: Humidity-controlled containers
Static load calculation report (FEM 1.001)
Dynamic simulation video (MP4 format)
GA drawings with interface dimensions (PDF/DWG)
CE Declaration of Conformity (DOC-2024-PRC)
