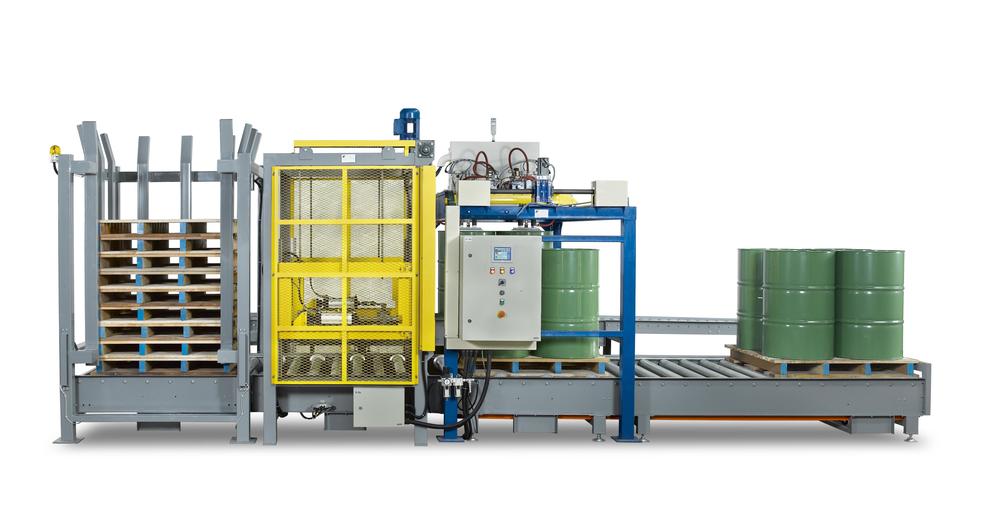

Drum palletizer
Drum palletizerThis machine is specially designed for the back stacking of the middle bucket assembly line.Thesystem is light in body,small in floor space and powerful in function,which can meet the u
- Brand： glzon
- Model： GZ-DP300
Drum palletizer
This machine is specially designed for the back stacking of the middle bucket assembly line.The
system is light in body,small in floor space and powerful in function,which can meet the use in
different environments.Servo control is adopted for accurate positioning,reliable grasping and no
barrels falling.It can complete the palletizing of various products such as barrels and boxes according
to the required grouping method and number of layers.The whole process of palletizing is fully
automated without manual intervention.Automatically adjust the running speed and run synchronously
with the entire production line.The optimized design makes the stacking compact and neat,and the
translation and lifting are stable and reliable.
Automatic Transfer Palletizer
| Product Item | Technical Parameter |
| Dimensions(L*W*H)mm | 2430*2560*3285 |
| Barrel Specifications | 10-33L square/round barrel |
| Pallet size(L*W*H)mm | 1200*1200*150(different specifications can be adjusted) |
| Palletizing layers | 3 floors(within the itinerary) |
| Palletizing capacity | About 800 barrels/hour |
| Main power | 380V/50Hz;7KW |
| Air pressure | 0.6MPa |
| Total Weight | About 1500kg |
This machine has a high degree of automation. It adopts touch screen and programmable controller.
To change the specification and stacking type, you only need to change the parameters on the touch
screen. The machine is equipped with a safety protection door. When the door panel is opened, the
equipment will automatically stop working to protect the personal safety of the operator.
This machine occupies a small area, saves space, reduces the labor intensity of subsequent packaging,
and saves manpower and production costs.
Working Process: barrel to station→conveyor roller stops→grabber dives to grab the barrel→rises→
translates to the pallet→submerges to release the barrel.
fixture
Function : The gripper adopts a finger structure and a pressing device, which can reliably clamp
and release products.
Frame material: high-strength aluminum alloy, stainless steel
Power source: cylinder
Air source pressure: 0.5MPa
Air consumption: 350L/min (based on 800 times/hour)
and release products.
Frame material: high-strength aluminum alloy, stainless steel
Power source: cylinder
Air source pressure: 0.5MPa
Air consumption: 350L/min (based on 800 times/hour)
APPLICABLE BARREL TYPE
