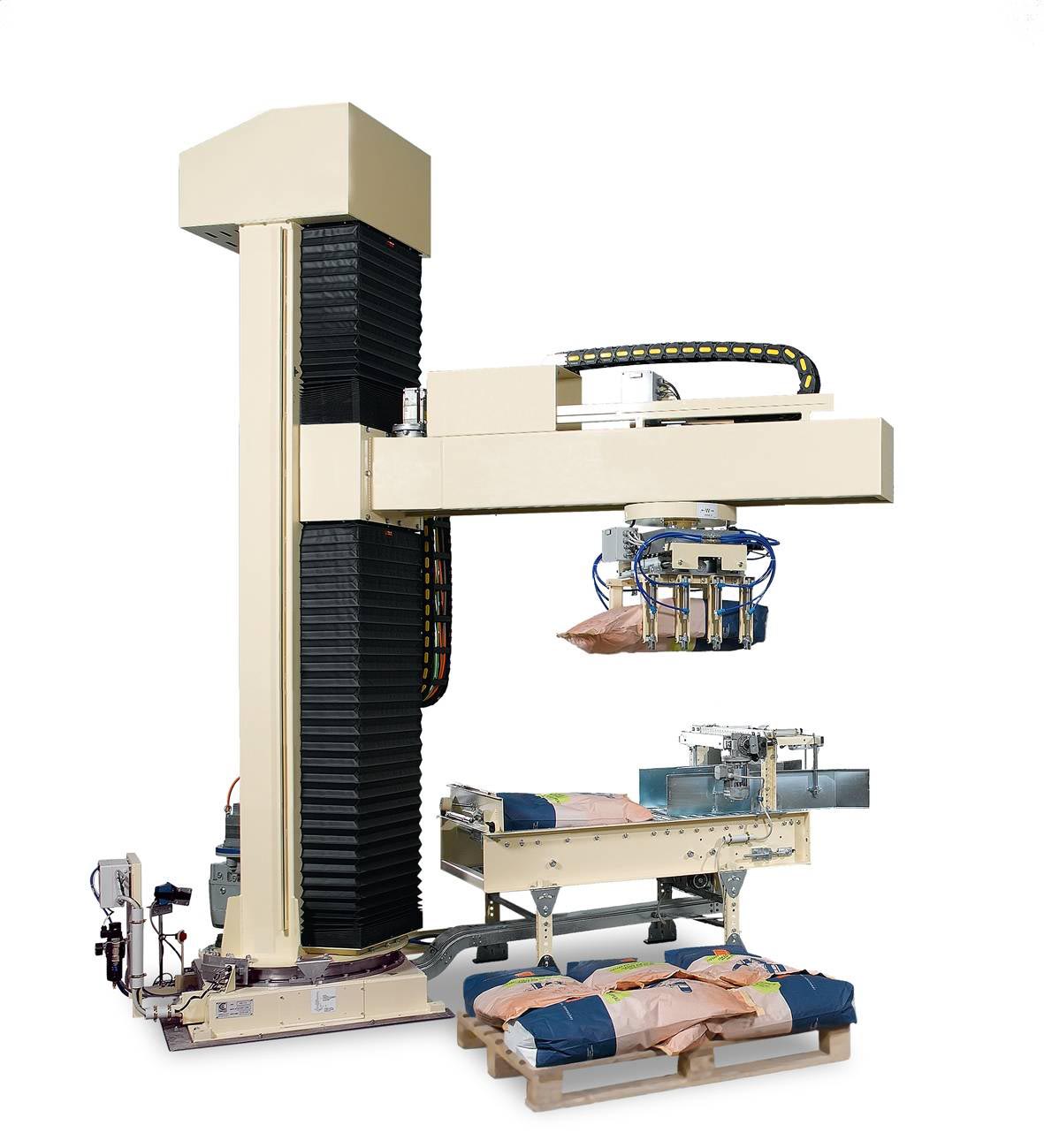

Technical conditions for column stacker crane:Equipment usage: handling and palletizingLoad: 100-180kgPrecision: 0.2mmPower supply: AC 380V ± 10%, 50Hz ± 2%, three-phase four wire typeCompressed air:
| Product Type | Max. Capacity | Cycle Rate | Position Accuracy | Specialized Feature |
|---|---|---|---|---|
| Rice Bags (25kg) | 26 bags/min | ±0.5° | Anti-slip vacuum head | |
| Feed Sacks (40kg) | 20 bags/min | ±1.2 mm | IP69K dust sealing | |
| Cartons (30kg) | 32 cases/min | ±0.3 mm | Adaptive grip force | |
| Oil Drums (200L) | 14 drums/min | ±0.7 mm | ATEX-compliant design | |
| IBC Totes (1000kg) | 10 totes/h | ±1.0 mm | Load sensing forks |
Compliance Standards: ISO 8373 (Robotics), ISO 18334 (Packaging), ASME B20.1 (Safety)
2.1 Heavy-Duty Robotic Manipulator
Structure: 6-axis carbon fiber arm with 316SS joints
Reach: 4,500 mm (360° work envelope)
Payload: 1,500 kg dynamic / 2,200 kg static
Protection: IP69K (high-pressure washdown ready)
2.2 Application-Specific Tooling
| Tool Type | Technical Parameters | Target Products |
|---|---|---|
| Vacuum Matrix Head | 64-zone control (0-95 kPa adjustable) | Rice/feed bags |
| Drum Clamp | 5-50 kN force control (±0.1%) | Oil/chemical drums |
| Carton Gripper | Non-marking polyurethane pads | Corrugated boxes |
| Fork Attachment | 1,800 mm reach (Grade 100 steel) | Pallets/IBCs |
2.3 Precision Conveyance System
Infeed: Servo-driven chain conveyor (±0.15mm positioning)
Pallet Management:
Automatic dispenser (40-pallet capacity)
Vision-based pallet integrity check
| Metric | Specification | Standard |
|---|---|---|
| Power Consumption | 35 kW peak / 0.16 kWh per pallet | IEC 61800-9-2 IE5 |
| Air Consumption | 550 NL/min @ 0.7 MPa | ISO 8573-1 Class 0 |
| Noise Emission | ≤63 dB(A) @ 1m | ISO 4871:2019 |
| MTBF (Robotic Arm) | >65,000 hours | ISO 281:2007 |
4.1 Intelligent Operation System
Vision Guidance: 3D ToF camera + LiDAR (0.05mm resolution)
AI Optimization:
Deformation compensation (up to 18% product variance)
Self-learning pattern generation
Real-time Monitoring:
Product weight deviation (±0.5%)
Ambient humidity (0-100% RH)
4.2 Industry-Specific Engineering
| Sector | Critical Challenge | Guangzhi Solution |
|---|---|---|
| Agriculture | Dust explosion risk | ATEX Zone 22 compliance |
| Food Grade | Hygienic requirements | FDA 21 CFR materials |
| Chemicals | Corrosive environment | C5-M coating (ISO 12944) |
| Logistics | 24/7 operation | 120,000-hr bearing life |
5.1 Integrated Protection
Safety Scanner: 3D LiDAR monitoring (IEC 61496 Type 4)
Emergency Stop: Dual-channel SIL 3 (0.15s response)
Containment: 60L drip trays with drain ports
5.2 Global Certifications
| Region | Certification |
|---|---|
| International | ISO 10218-1/2, ANSI/RIA R15.08 |
| Europe | CE, EMC, Machinery Directive |
| North America | UL 1740, OSHA 1910.212 |
| Hazardous Areas | ATEX II 2G/3G, IECEx |
| Metric | GZ-UP1500 | Competitive Systems |
|---|---|---|
| Changeover Time | 90 seconds | 25-40 minutes |
| Product Damage Rate | 0.015% | 0.4-1.0% |
| Energy Consumption | 0.17 kWh/pallet | 0.32-0.45 kWh/pallet |
| System Uptime | 99.3% | 93-96% |
Industry-Specific FAT Protocols
Seismic Analysis Report (IBC 2021)
Material Certificates (ASTM/NACE)
3D Simulation Files (JT/STEP formats)
