Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

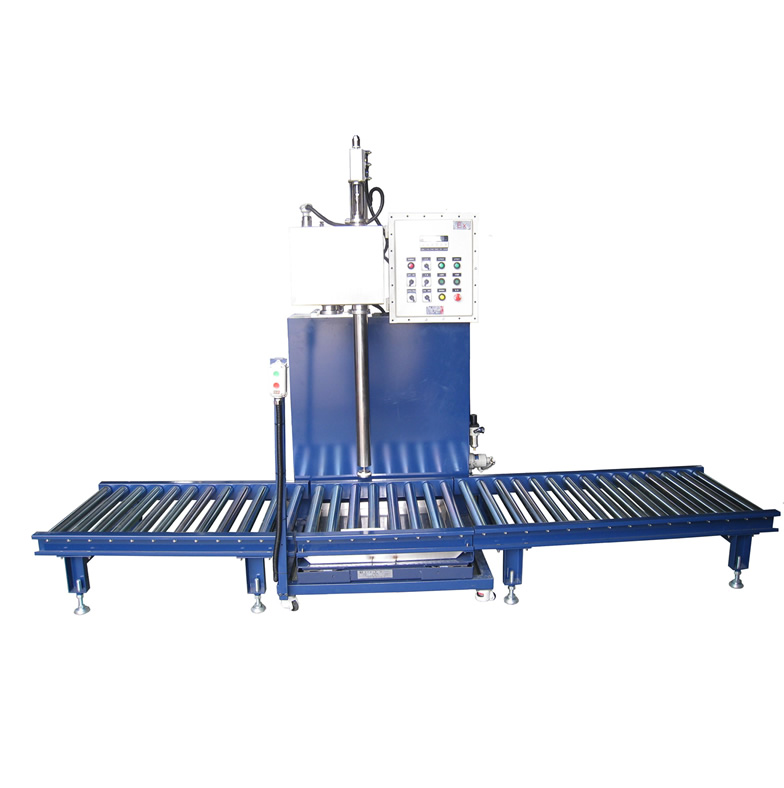

200L Explosion-Proof Filling Machine for Storage Tanks
ATEX/IECEx Zone 0 Certified ? Seamless Tank Integration ? Zero Vapor Emission
| Layer | Technology | Certification |
|---|---|---|
| Ignition Prevention | Pressurized Cabin (IP66, +50Pa) | IECEx IEC 60079-2 |
| Gas Detection | IR Hydrocarbon Sensors (5% LEL Auto-Stop) | SIL-3 (IEC 61511) |
| Static Control | Conductive Paths (<10? Ω) + Ionized Air | NFPA 77 Compliant |
| Containment | Double Mechanical Seals + Vapor Recovery | API 682 Plan 74 |
Tank Integration System:
Auto-Docking Interface: Laser-guided flange alignment (±0.5mm)
Multi-Tank Protocol: API 650/ASME tanks, ISO containers, IBCs
Overfill Prevention: Radar + Capacitive redundancy (SIL-2)
| Parameter | TS-5100 (Standard) | TS-5200X (ATEX Zone 0) | TS-5300H (High-Temp) |
|---|---|---|---|
| Capacity | 180-220L (±0.2%) | 180-220L (±0.25%) | 180-220L (±0.3%) |
| Throughput | 25 drums/hour | 22 drums/hour | 20 drums/hour |
| Tank Pressure Range | -0.5 to +0.3 bar | -0.8 to +0.5 bar | -1.0 to +0.8 bar |
| Accuracy | ±0.2% mass flow | ±0.25% | ±0.3% |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | Inconel 625 |
| Temp Range | -20°C to +80°C | -40°C to +120°C | -60°C to +180°C |
| VOC Control | >99% Carbon Adsorption | >99.5% Thermal Oxidizer | >99.9% Cryocondensation |
| Explosion Protection | ATEX Zone 1 | ATEX Zone 0 | ATEX Zone 1/0 |
| Connectivity | API 650 Nozzles | ISO 284 Flanges | ASME B16.5 Flanges |
| Power | 480V/60Hz, 7.5kW | 24VDC Ex ia | 480V/60Hz, 9.2kW |
| N? Inerting | 40 L/min | 50 L/min | 60 L/min |
| Tank Type | Connection Standard | Sealing Technology |
|---|---|---|
| Fixed Roof Tanks | API 650 App. F | Double O-Ring + Lip Seal |
| Floating Roof Tanks | API 650 App. H | Magnetic Fluid Seal |
| ISO Container Tanks | ISO 1496-3 | Quick-Cam Lock (ISO 8326) |
| IBC Totes | DIN 96-101 | Inflatable PTFE Gasket |
| Feature | Specification |
|---|---|
| Reid Vapor Pressure | Auto-compensation (±0.05 psi) |
| BLEVE Prevention | Emergency detach (0.3s response) |
| Crude Compatibility | Alloy 59 flow path (TAN<5) |
Cross-Contamination Prevention:
Triple-seal purge system
Flushing validation ports
Corrosion Monitoring:
| Parameter | Threshold |
|---|---|
| Wall Thinning | >0.1mm/yr → Alert |
| Chloride Content | >25ppm → Auto Flush |
Cryogenic sealing (-162°C)
Electrostatic grounding (<5Ω)
Auto-defrost system
HMI with TankOS?
Predictive Safety Features:
| Risk Factor | System Response |
|---|---|
| Vapor >25% LEL | Purge Boost + Flow Reduction |
| Seal Leak >0.1ml/min | Auto Shutdown |
| Tank Overpressure | Emergency Venting Activation |
? ATEX 2014/34/EU Cat.1 Zone 0 (TS-5200X) ? IECEx IEC 60079-0/1/2/7/31 ? API 650 Overfill Protection ? ASME B31.3 Process Piping ? SIL-3 (IEC 61511)
1. Tank Alignment → 2. Flange Auto-Docking → 3. N? Purging (O?<0.5%) → 4. Pressure Equalization → 5. Mass Flow Filling (±0.2%) → 6. Vapor Recovery → 7. Emergency Decoupling Test
Cycle Time: 2.4 minutes/drum
