Neck in Drum Filling System Price Minimize Splash & Evaporation
Neck-sealed drum filling system reduces solvent evaporation to <0.05%. Saves 725k/yearon10kdrums.ATEXZone0certified.Pricefrom78.5k!
- Brand： glzon
- Model： GZM_200L
VaporGuard? VG-7000 Series

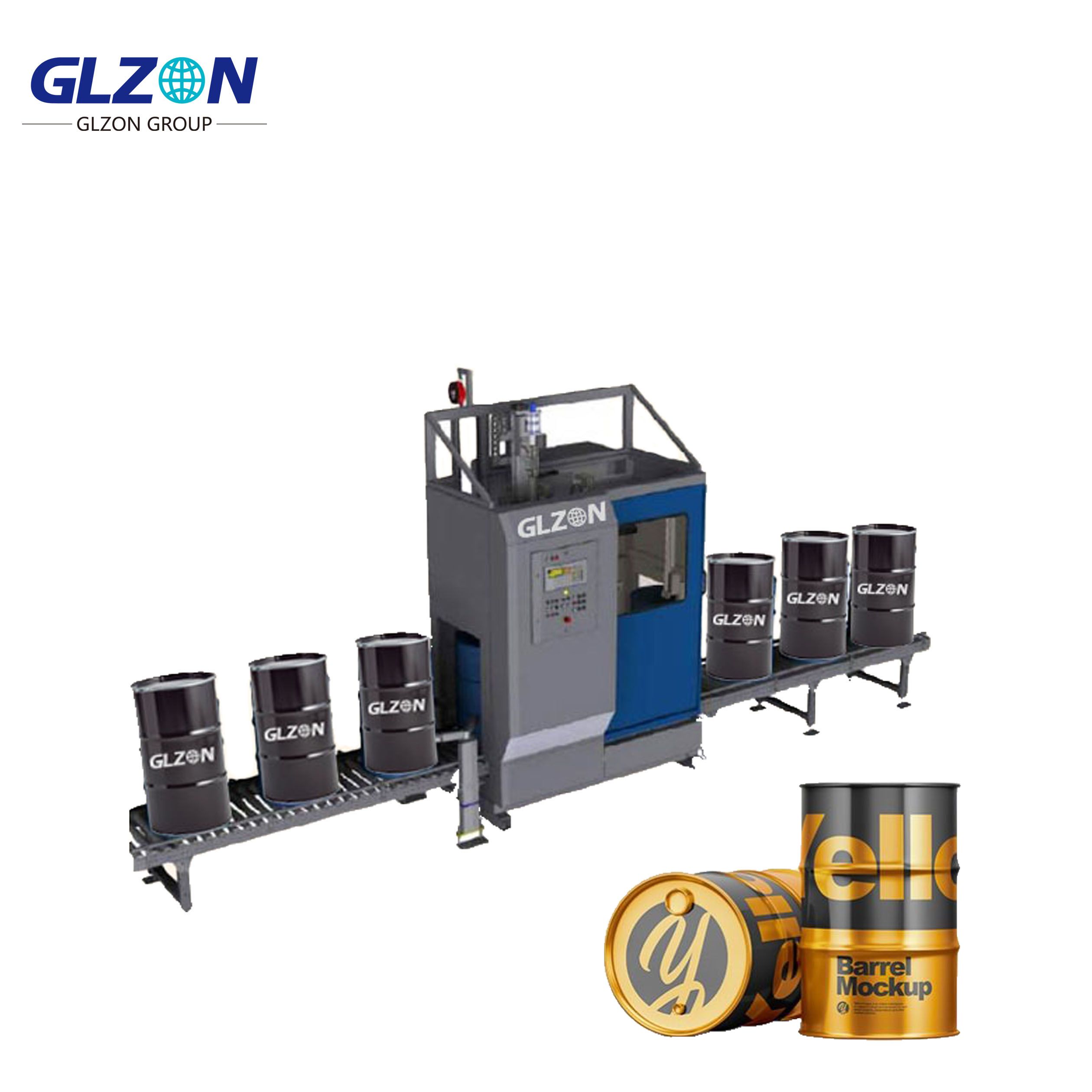

Neck-Sealed Drum Filling System
Zero Splash ? Near-Zero Evaporation ? ATEX-Certified Precision
Core Anti-Splash & Evaporation Tech
1. SubMerge? Intelligent Nozzle
Performance Metrics:
Splash Reduction: >99% (vs open filling)
Residual Vapor: <0.1% headspace (N? purged)
Evaporation Loss: <0.05% (EPA Method 24 validated)
2. TripleSeal? Containment System
Layer | Technology | Certification |
|---|---|---|
Primary Seal | Inflatable PTFE bladder | ISO 15848-1 Class AH |
Secondary Barrier | Double-lip Kalrez? gasket | EN 1515-1 Annex A |
Vapor Recovery | Activated carbon + condensation | >99.95% VOC capture |
Technical Specifications
Parameter | VG-7100 (Standard) | VG-7200X (ATEX) | VG-7300S (Solvent Grade) |
|---|---|---|---|
Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.18%) |
Throughput | 28 drums/hour | 25 drums/hour | 26 drums/hour |
Fill Speed | 150 L/min | 130 L/min | 140 L/min |
Evaporation Control | N? Blanketing (O?<0.5%) | Same + O? Scavenger | N? + Argon Mix |
Splash-Free Insertion | 5-50mm depth control (±1mm) | Same | Laser-guided positioning |
Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Alloy 59 + PFA |
VOC Emission | <10mg/m3 | <5mg/m3 | <2mg/m3 |
Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 6.2kW |
N? Consumption | 35 L/min | 40 L/min | 30 L/min |
Changeover Time | <5 min (Tool-Free) | <6 min | <5 min |
Price Range | 125,000 | 165,000 | 195,000 |
Evaporation & Splash Control Matrix
Solvent Type | Conventional Loss | VG-7100 Performance | Cost Savings/200L Drum |
|---|---|---|---|
Acetone | 1.2-1.8% | <0.06% | $4.80 saved |
Toluene | 0.8-1.2% | <0.04% | $3.20 saved |
Methanol | 1.5-2.0% | <0.07% | $3.90 saved |
IPA | 0.7-1.0% | <0.03% | $2.10 saved |
ROI Calculation
Chemical Plant Case (10,000 drums/year):
? Evaporation Savings: - Average solvent cost: $2.50/kg - Loss reduction: 1.5% → 0.05% = 29kg/drum saved - Annual savings: 10,000 × 29kg × $2.50 = **$725,000**? Operational Savings: - Reduced N? consumption: $18,000/year - Lower cleaning costs: $42,000/year - VOC compliance savings: $55,000/year ? System Cost: $125,000 (VG-7100) ? Payback Period: **<3 months**
Industry-Specific Packages
Budget-Conscious Operations (VG-7100B)
Feature | Cost-Saving Approach | Performance |
|---|---|---|
Sealing System | Single inflatable seal | <0.1% evaporation |
Material Contact | 304 SS + EPDM gaskets | Compatible with pH 2-12 |
VOC Control | Basic carbon adsorption | >95% capture |
Price: $78,500
Premium Hazardous Liquids (VG-7300S)
Alloy 59 flow path (HCl/HF resistance)
Triple redundant leak detection
SIL-3 emergency shutdown
Price: $195,000
Certifications
? ATEX 2014/34/EU Cat.1 (Zone 0) ? EPA Method 21 Compliance ? ISO 15848-1 Class AH Sealing ? CE EN 13445 Pressure Vessel
