Auto Pail Palletizer
Guangzhi’s auto pail palletizer stacks 400 pails/hr with ±0.5mm precision. ATEX/OSHA-compliant. Reduces labor by 85% & damage to 0.1%. Free layout design!
- Brand： glzon
- Model： GZM_30L

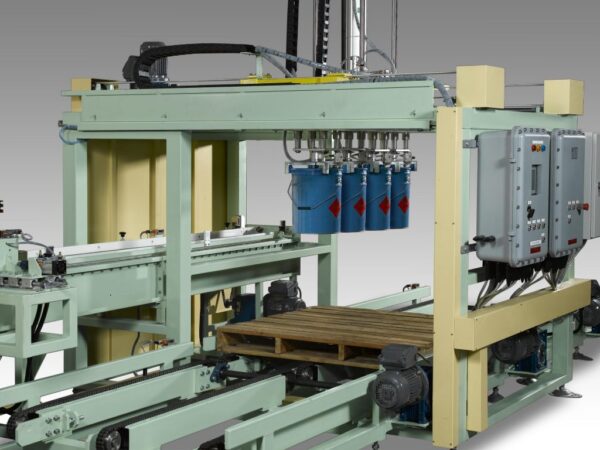

Auto Pail Palletizer GZ-APP1200 Series
*Robotic Stacking System for 5–30L Pails & Drums (200–400 pails/hour)*
Shanghai Guangzhi Automation’s GZ-APP1200 Series automates the palletizing of filled pails (plastic/steel) with military-grade precision, achieving ±0.5mm layer alignment at 10 seconds/cycle. Engineered for paints, solvents, lubricants, and chemicals, this ATEX/OSHA-compliant system replaces 4–6 manual laborers, reduces container damage to <0.1%, and ensures OSHA-compliant load stability for hazardous materials.
Engineering Innovations
Intelligent Adaptive Stacking
3D Vision Guidance: Laser scanners detect pail orientation/damage; auto-corrects placement (±0.5mm tolerance).
Multi-Pattern Flexibility: Handles pyramid, interlock, or column stacks (50+ preset patterns via 15" HMI).
Heavy-Duty Performance
Dual Grip End-Effector: Vacuum cups + mechanical claws handle 5–30L pails (?250–450mm) up to 50kg each.
High-Torque Servo Motors: 0.5G acceleration for 400 pails/hour throughput (24/7 operation).
Safety & Compliance
ATEX Zone 2/22 Option: Explosion-proof for flammable vapors/dusts (e.g., solvent residues).
OSHA-Integrated Safeguards: Light curtains, E-stop zones, and tilt sensors for unstable loads.
Zero-Downtime Architecture
Auto Pallet Dispensing: Integrated pallet denester feeds EUR/US standard pallets (1200×1200mm).
IoT Predictive Maintenance: Monitors bearing wear/motor load; alerts 72hr pre-failure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GZ-APP1200-Pro |
| Pail Capacity | 5–30L (max. 50kg/pail) |
| Throughput | 200–400 pails/hour |
| Max. Pallet Height | 1,800 mm (OSHA compliant) |
| Pallet Size | 800–1200×1200 mm (customizable) |
| Placement Accuracy | ±0.5 mm |
| Power | 380V/50Hz, 6.8 kW |
| Air Consumption | 0.6 MPa, 0.5 m3/min |
| Cycle Time | 9–12 seconds/pail |
| Footprint (L×W×H) | 4200 × 2800 × 3800 mm |
| Compliance | ATEX, CE, OSHA 1910.178, ANSI/RIA R15.06 |
Performance vs. Manual Stacking
| Metric | GZ-APP1200 Robotic | Manual Stacking |
|---|---|---|
| Output (8h) | 3,200 pails | 640 pails |
| Labor | 0.5 operators | 4 operators |
| Container Damage | 0.1% | 3–8% |
| Pallet Rejection | 0.2% | 5–12% |
| ROI Period | 8–14 months | N/A |
Industry-Specific Adaptations
Chemical Plants: Stainless steel (316L) construction for corrosive environments.
Paint Facilities: Anti-static grippers (<10? Ω) for solvent-filled pails.
Lubricant Blenders: Oil-resistant vacuum cups (NBR/FKM material).
Food-Grade: GMP-compliant version with washdown protection (IP69K).
Integration-Ready Design
? Seamless Line Sync: Interfaces with Guangzhi’s filling/capping systems (CANopen/EtherCAT)
? Automated Labeling: Optional print-and-apply labeler for pallet ID
? Pallet Conveyance: Integrated roller/chain conveyors (15 m/min)
