High-precision volumetric filler achieves ±0.1% accuracy across 1-100,000 cP liquids. AI viscosity compensation, 300CPH & CIP/SIP ready. FDA/CE compliant.

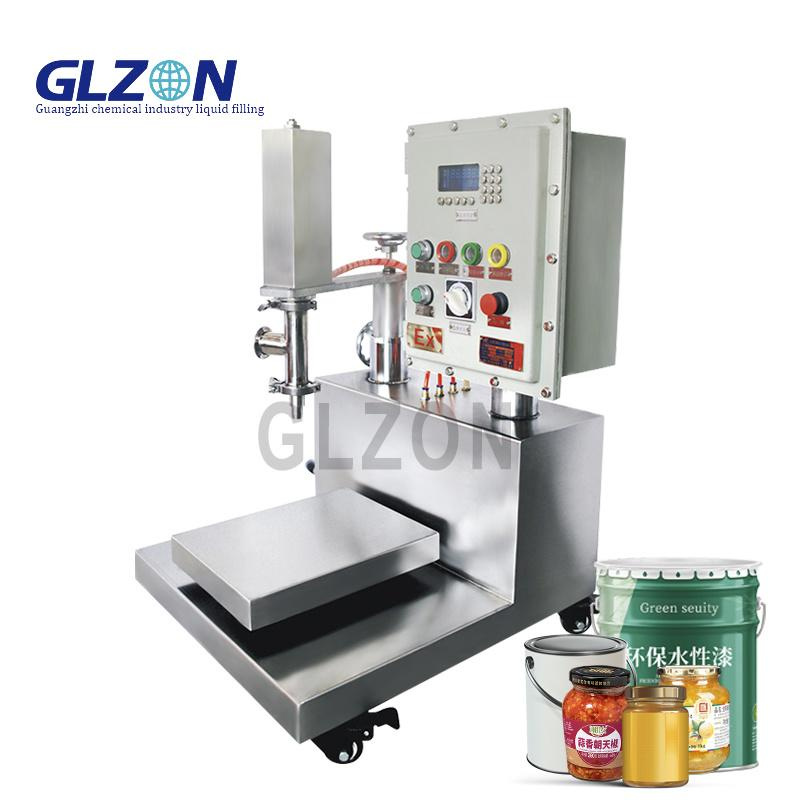

Shanghai Guangzhi VFS-1000 redefines volumetric filling with ±0.1% accuracy across 1-100,000 cP liquids – from water-thin solvents to toothpaste-thick creams. Featuring servo-driven piston dosing, real-time viscosity sensing, and self-learning flow algorithms, it eliminates viscosity-induced errors while achieving 300 fills/hour in pharmaceutical, food, and chemical operations.
1. AI-Powered Viscosity Compensation
| Component | Technology | Performance |
|---|---|---|
| Viscosity Sensor | In-line rheometer (0.1 cP res.) | ±2% real-time measurement |
| Adaptive Piston Control | Servo-driven stroke adjustment | Compensates ±50% viscosity shifts |
| Temperature Compensation | Peltier-cooled flow path (±0.1°C) | Density drift <0.01%/°C |
| Dead Volume Elimination | Dynamic nozzle retraction | Residual ≤0.05ml |
2. Zero-Contamination Architecture
Sanitary Design:
Surface Finish:
| Industry | Ra Value | Certification |
|---|---|---|
| Pharmaceuticals | ≤0.4μm | ASME BPE-2019 |
| Food & Beverage | ≤0.8μm | EHEDG Doc. 8 |
Quick-Change Kits:
Tool-free swap <3 min (pistons/nozzles)
3. Hyper-Flexible Format Handling
| Parameter | Range | Adjustment Time |
|---|---|---|
| Fill Volume | 0.1ml-20L | <10s |
| Container Height | 20-500mm | <15s |
| Nozzle Size | ?1-50mm | <30s |
| Viscosity | 1-100,000 cP | Auto-adaptive |
| Model | VFS-1100 (Standard) | VFS-1200 (GMP) | VFS-1300 (ATEX) |
|---|---|---|---|
| Accuracy | ±0.1% | ±0.08% | ±0.15% |
| Throughput | 300 fills/hour | 250 fills/hour | 200 fills/hour |
| Viscosity Range | 1-100,000 cP | 1-50,000 cP | 5-80,000 cP |
| Fill Volume | 10ml-10L | 1ml-5L | 50ml-20L |
| Material Contact | 304 SS + PTFE | 316L EP + USP VI | 316L + ATEX polymers |
| Power | 380V/50Hz, 3.5kW | 380V/50Hz, 2.8kW | 24VDC Ex ia |
| Air Consumption | 100 L/min @ 0.6MPa | 80 L/min @ 0.6MPa | 120 L/min @ 0.6MPa |
| Cleanability | Solvent CIP | SIP @ 121°C | ATEX CIP |
| Footprint (L×W×H) | 1800×900×1800mm | 2000×900×1900mm | 2200×1000×2000mm |
Pharmaceuticals
Peristaltic pump option (shear-sensitive biologics)
21 CFR Part 11 data integrity
Single-use fluid path
Food & Sauces
IP69K washdown rating
Allergen purge protocol
USDA-compliant seals
Chemicals & Solvents
ATEX Zone 1/21 certification
Vapor recovery hood (>99% capture)
Static dissipation (<10? Ω)
Cosmetics
Anti-foam pulsed filling
Perfume alcohol compatibility
Nitrogen blanketing for oxidation control
10" HMI with Fluid Intelligence
Key Modules:
Viscosity-Flow Modeling:
| Liquid Type | Adaptive Action |
|---|---|
| Newtonian | Linear speed adjustment |
| Shear-thinning | Exponential flow acceleration |
| Thixotropic | Pulsed flow + dwell time |
Predictive Maintenance:
Seal wear index forecasting
Piston drift compensation
Global Cosmetic Brand Case:
Challenge: ±3% fill variance in 50,000 cP creams
Solution: VFS-1000 with AI viscosity adaptation
Results:
? ±0.2% accuracy across seasons
? $580k/year material savings
? ROI in 8 months
Global Compliance:
FDA 21 CFR 177.2600
CE EN 60204-1
EHEDG Doc. 8
ATEX 2014/34/EU (Zone 1)
Advanced Modules:
| Module | Function |
|---|---|
| Inline Checkweigher | Real-time feedback (±0.1g) |
| Vision Inspection | Fill level/particulate detection |
| AR Calibration | HoloLens-guided volume setup |
| Carbon Tracker | g CO?/mL filling analytics |
24/7 Global Response:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Servo pistons
Viscosity sensors
Sealing kits
Performance Validation:
Gravimetric accuracy certification
