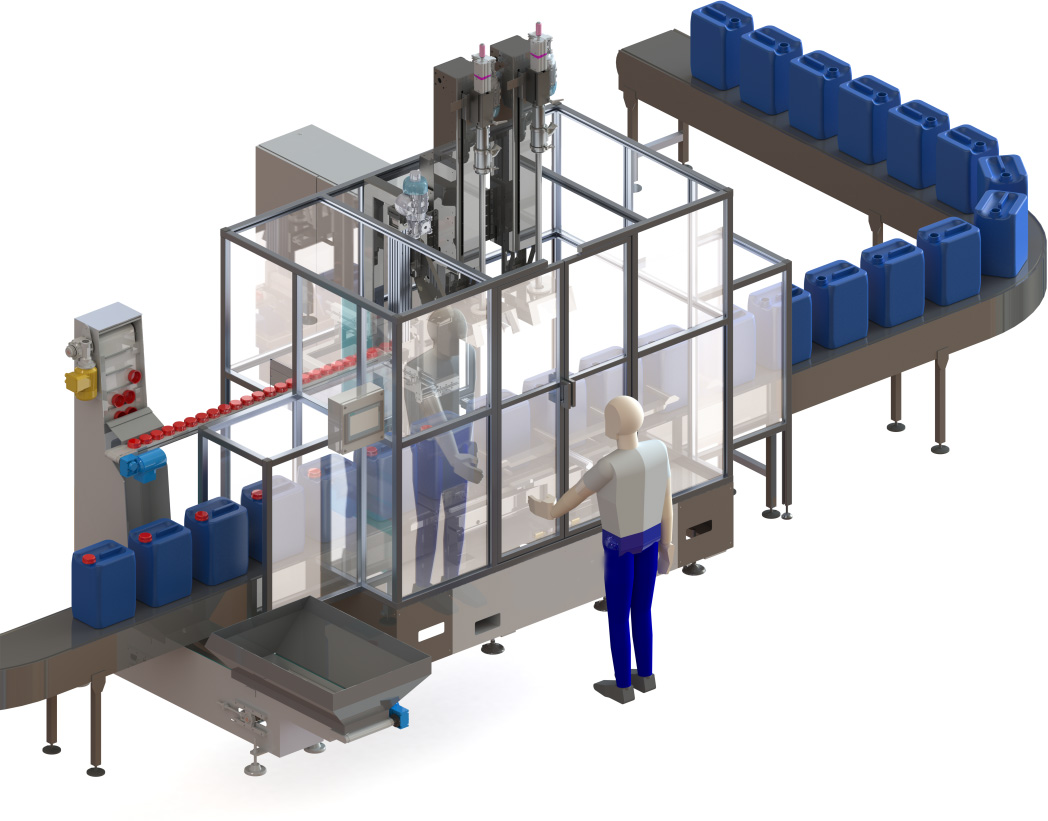

The automatic canisters filling machine GZM is one of our advanced filling solutions for liquid or viscous products. It is indicated for the filling of 1 to 30 liters round or rectangular based metall
Intelligent Precision for Industrial Liquid Packaging
Shanghai Guangzhi Automation’s GZM Series Automatic Canisters Filling Machine delivers high-speed, high-accuracy filling for containers ranging from 1L to 200L, with gravimetric accuracy up to ±0.1%. Engineered for chemicals, food, pharmaceuticals, and lubricants, this system integrates AI vision, robotic handling, and spill-containment technologies to achieve 360+ canisters/hour throughput while eliminating manual intervention. Compliant with ATEX, FDA, and GMP standards, it ensures zero contamination and 99.9% operational reliability in harsh environments.
AI Vision Positioning System
3D LiDAR + CCD cameras scan canister orientation/dimensions in real-time, enabling automatic nozzle alignment and mixed-SKU handling (e.g., round, square, or irregular containers).
Visual Addressing Robotics auto-switch filling nozzles for 1–4 material types without downtime.
Dual-Stage Gravimetric Filling
Two-speed flow control (fast → precision mode) with load-cell feedback (±0.1% accuracy).
Retractable lances with nitrogen purging prevent oxidation and dripping (residual loss <0.02%).
Corrosion-Resistant Hygienic Design
Material Contact Parts: 316L stainless steel / PTFE (FDA/EC1935 compliant).
IP66 washdown-ready for sterile zones (optional GMP/ATEX upgrades).
IoT-Enabled Control Hub
15" HMI touchscreen with 30+ recipe presets, OEE tracking, and remote diagnostics via Guangzhi SmartFill OS.
| Parameter | Specification | Customizable Options |
|---|---|---|
| Filling Range | 1–200 L/canister | 5 ml–1,000 L |
| Throughput | 360+ units/hour (200L) | 700 units/hour (5L) |
| Accuracy | ±0.1% (gravimetric) | ±0.5% (volumetric) |
| Material Compatibility | Liquids (1–500,000 cP), Pastes, HazChem | Granules, Foaming Liquids |
| Power Supply | 380V/50Hz, 3.5–6.5 kW + 0.7 MPa air | 220V/60Hz available |
| Canister Types | Plastic/Metal Jerrycans, IBCs, Drums | Custom clamping (?80–650 mm) |
| Safety Rating | Ex d e ib mbⅡBT4 Gb (standard) | ATEX Zone 1/21, ISO 13849-1 |
| Footprint (L×W×H) | 2,400 × 1,400 × 1,650 mm | Compact/Mobile configurations |
Chemicals/Lubricants:
Hazardous solvent filling with static control (<10? Ω resistance) and N? blanketing.
Food & Pharmaceuticals:
CIP/SIP-ready models for oils, syrups, vaccines (GMP Grade B/C).
Coatings & Adhesives:
High-viscosity resin filling (500,000 cP) with anti-crystallization lances.
E-commerce Logistics:
Automated 1–5L bottle filling + capping (25+ units/minute).
| Metric | GZM Series | Traditional Machines |
|---|---|---|
| Labor Cost | 80% reduction (1 operator) | 3–5 operators required |
| Spill/Contamination | Zero leakage (drip recovery) | 5–10% product loss |
| Changeover Time | <3 minutes (tool-free) | 15–45 minutes |
| ROI Period | 6–12 months | 18–36 months |
Upgrade Kits:
Explosion-Proof: ATEX Group IIC T6 for flammable vapors.
Cryogenic Filling: -50°C capability for pharmaceuticals.
Automated Capping: Integrated screw-capping/foil sealing.
Safety Ecosystem:
Laser intrusion scanners + emergency stops (ISO 13849-1 PLd).
Vapor sensors and spill containment basins.
APPLICABLE BARREL TYPE
